Thông tin chi tiết sản phẩm:
|
| Phạm vi nhiệt độ: | -30oC ~ 30oC | Định hướng máy đo độ giãn: | nằm ngang |
|---|---|---|---|
| chiều dài mẫu: | 50mm (tối đa) hoặc 25 mm | đường kính mẫu: | 6~10mm; tròn hoặc vuông |
| Phạm vi dịch chuyển LVDT: | 0,1-1um | Tốc độ sưởi ấm: | 1 ~ 30oC / phút, độ chính xác ±1oC |
| Cung cấp điện: | 220v, 50Hz | Phạm vi đo lường: | ± 5 mm ± 0,1% |
| Người giữ mẫu: | Quartz | Thanh thăm dò: | Quartz |
| Phương pháp làm mát: | Bể nước bên ngoài/khí nén | Tiêu chuẩn hiệu chuẩn: | Mẫu chuẩn thạch anh |
| Thu thập dữ liệu: | Máy tính tích hợp với máy in | Nền tảng phần mềm: | Windows 8/7/XP |
| Độ chính xác của hệ thống sưởi: | ± 1 | ||
| Làm nổi bật: | Temperature Test Range -30℃ ~ 30℃ Thermal Expansion Tester,LVDT Displacement Range 0.1-1um Dilatometer,Heating Rate 1 ~ 30℃/minute Polymer Testing Equipment |
||
| Specification | Details |
|---|---|
| Temperature test range | -30℃ ~ 30℃ |
| Sample diameter | 6~10 mm; round or square |
| Sample length | 50mm(max) or 25mm |
| Cooling | External water bath/compressed air |
| Measuring range and error | ± 5 mm ± 0.1% |
| Sample holder and probe rod | Quartz |
| Dilatometer orientation | Horizontal |
| LVDT displacement range | 0.1-1um |
| Heating rate | 1 ~ 30℃ /minute, accuracy ±1℃ |
| Calibration standards | Quartz standard sample |
| Temperature control | Experimental process controls parameters, including PID parameters and communication methods. Allows arbitrary adjustment, setting, and locking via intelligent instrument. Parameters can be modified by computer. |
| Data Acquisition | Onboard computer with printer, English version software compatible with Windows 8/7/XP |
| Power supply | 220V, 50HZ |

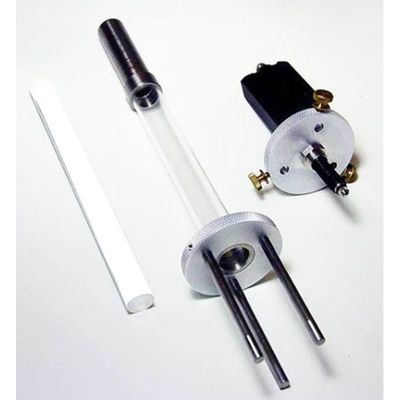

| Product list | Test host, Cold thermostatic bath, Quartz standard sample, Testing software |
Dongguan Liyi Environmental Technology Co., Ltd is a high-technology production-oriented enterprise specializing in developing, manufacturing, and marketing environmental testing equipment. With advanced technology, experienced personnel, and a comprehensive quality management system, we provide efficient professional services and excellent after-sales support.
Our product range includes simulated environmental testers, plastic and rubber testers, and various material testing equipment. Based in Dongguan, Guangdong province (China's manufacturing center), we also maintain an office in Kunshan, Jiangsu province to better serve customers in Eastern China.
We serve customers from over 150 countries and regions, collaborating with dealers worldwide to provide superior service. Our mission is to help customers establish quality testing labs to ensure product excellence.
Committed to continuous development and innovation, we combine international testing standards with customer-specific requirements to set new benchmarks in China's testing industry.
