WATER VAPOR PERMEABILITY TESTER FOR COATED FABRICS

WATER VAPOR PERMEABILITY TESTER FOR COATED FABRICS

USAGE

Used for moisture permeability test of various fabrics, film materials and coated fabrics.

TESTING STANDARDS

GB/T 12704,ASTM E 96,JIS L 1099,BS 7209

SALIENT FEATURES

• It conforms with various standards and testing methods.
• The wind speed is adjustable, the wind speed of each layer can be adjusted separately.
• Turn-table type sample stand, the testing is more uniformity that fixed type, and the speed of revolution of sample stand is adjustable.
• Automatically control the temperature / humidity.
• Single chip microcomputer control, color touch-screen operation, modular design, digital temperature and humidity setting, intelligent control, real-time display of temperature and humidity and time.
• Input the parameters of the reporting interface of the color touch-screen, can be calculated the WVT, WVP, PV value.
• High-precision temperature and humidity sensor, test data stability, high accuracy.

TECHNICAL DETAILS

1. Adjustable temperature control precision / resolution: 18-50℃ ±0.5℃/±0.1℃

2. Adjustable humidity relative humidity: 40～95%RH,±2%

3. Airflow velocity: 0.1~0.8m/s

4. Rotate speed: 1～15r/min

5. Moisture cup plies and number: single plies, ASTM E96 8

6. Display mode: Color touch screen

7. Power supply: AC 220V±10％ 50Hz 3500W 16A

8. Dimension: 750×720×1400mm

9. Weight: 110kg

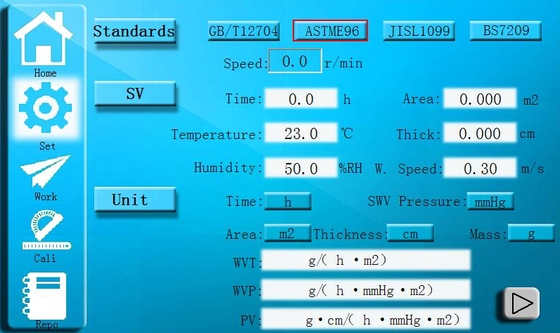

Reference Photo:
