Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing

Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing
Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing

Hình ảnh lớn :  Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing

Thông tin chi tiết sản phẩm:
Nguồn gốc: Quảng Đông, Trung Quốc
Hàng hiệu: Liyi
Số mô hình: Lệ Nghi
Thanh toán:
Số lượng đặt hàng tối thiểu: 1

Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing

Sự miêu tả
Quyền lực: 3kw Điện áp: 220 V, 380 V, 240 V, 110 V
Dung tích: 1,2,5,10,20,50,100,200.500kg tùy chọn Nghị quyết: 1/250.000
Sự chính xác: ± 0,5% Phạm vi tốc độ: 0,5 ~ 500mm / phút
Đột quỵ: 650mm (không bao gồm kẹp) Kích thước: 58*58*125cm
không gian thử nghiệm: 120mm Công suất tải tối đa: 500kg
Lỗi bắt buộc: ± 0,5% Tốc độ kiểm tra: 0,1 ~ 500mm / phút
Loại động cơ: động cơ panasonic Kiểm tra đột quỵ: 850mm (chứa kẹp)

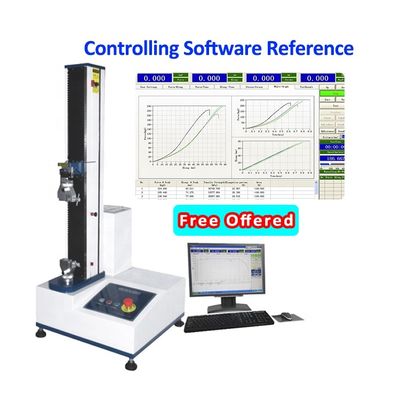

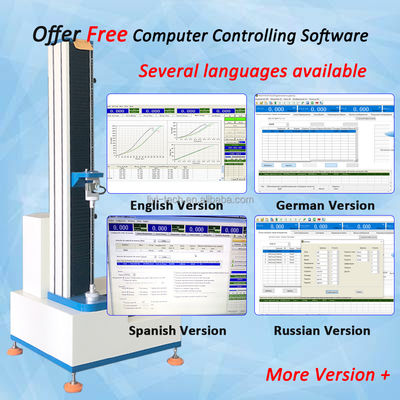

Kiểm soát hoạt động: Kiểm soát máy tính
Làm nổi bật:

220V/380V Voltage Universal Testing Machine

,

850mm Stroke Universal Testing Machine

,

1/250

,

000 Resolution Universal Testing Machine

Liyi Tensile Test Equipment - Universal Testing Machine
Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing 0
Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing 1

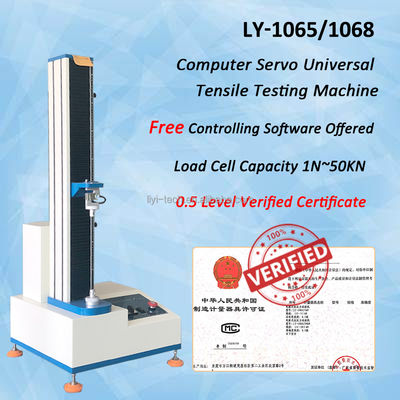

Product Overview

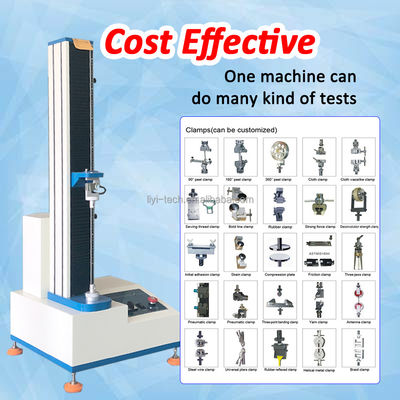

The Liyi universal testing machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling tests on various materials including metals, tape, composites, alloys, rigid plastics, films, elastomers, textiles, paper, board and finished products.
Design Standards
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7
Technical Specifications
Model LY-1065 LY-1068

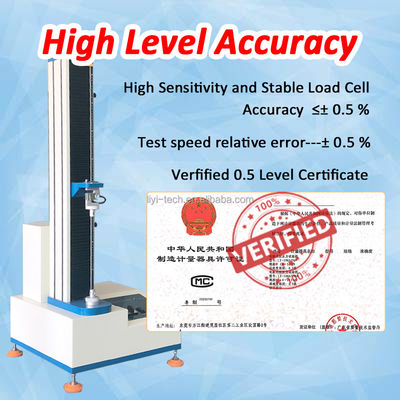

Accuracy Class 0.5 0.5
Max Load Capacity 500KG -
Optional Load Cell 1,2,5,10,20,50,100,200,500kg -
Resolution 1/250,000 1/150,000
Force Relative Error ±0.5% ±0.5%
Test Speed Range 0.1~500mm/min 50~500mm/min
Motor Panasonic Servo Motor AC Inverter Motor
Test Stroke (Contain Clamps) 850mm -
Product Details
Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing 2
Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing 3
Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing 4
Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing 5
Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing 6
Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing 7

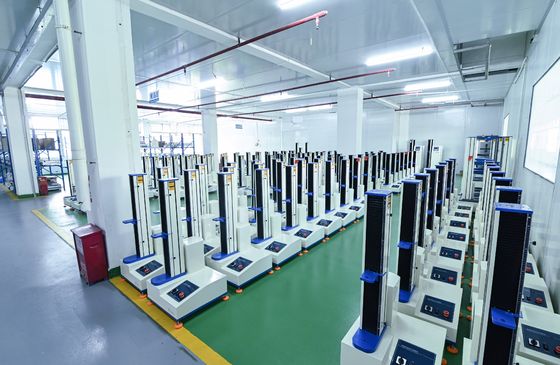

Company Profile
Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise specializing in developing, manufacturing, and marketing various environmental testing equipment. With advanced technology, experienced personnel, and a complete quality management system, we serve customers in over 150 countries.
Frequently Asked Questions
1. Are you the manufacturer? What about after-sales service and warranty?
Yes, we are a professional manufacturer of testing equipment. All machines come with 12 months warranty after shipment, including free maintenance. For urgent issues, we provide solutions within 24-48 hours through email or video support.
2. What's the delivery time?
Standard machines typically ship within 15-20 working days after deposit. We can expedite for urgent orders and offer special arrangements when needed.
3. Do you accept customization and OEM services?
Yes, we offer both standard and customized machines according to your requirements, including OEM services with your logo on the equipment.
4. How do I install and use the machine?
We provide English operation videos with each machine. Most units ship fully assembled - just connect power to begin testing. For complex installations, we offer on-site assistance.
