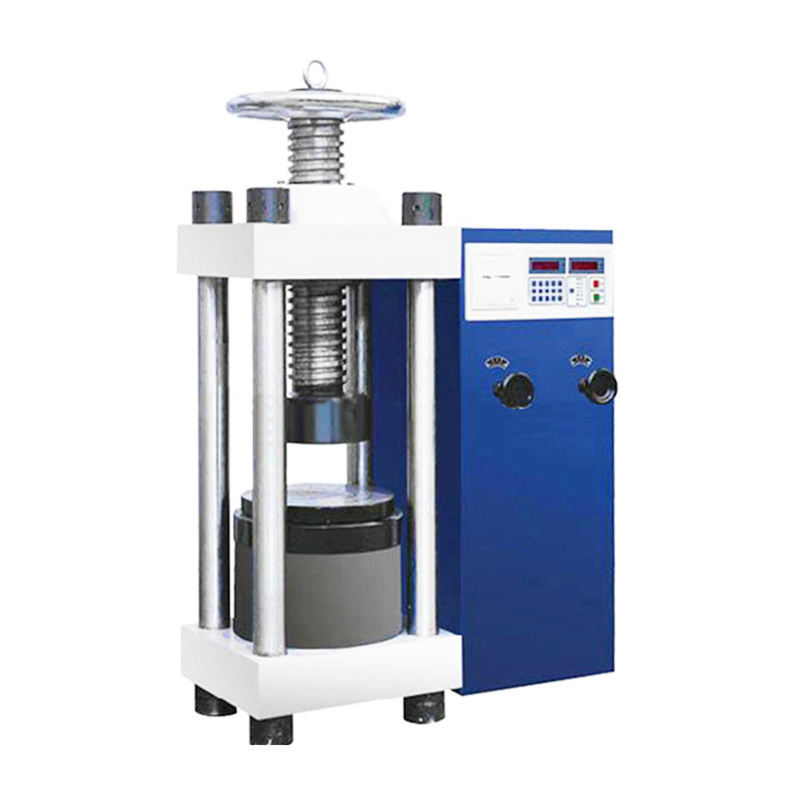

Liyi Automatic Concrete Compression Testing Machine
Key Specifications
| Attribute |
Value |
| Maximum test force (kN) |
2000 |
| Test force resolution |
0.01kN |
| Hydraulic pump pressure rated |
40MPa |
| Fluctuation bearing plate size |
260*300mm |
| Piston diameter |
250mm |
| Motor power |
380V±10%V,50Hz |
| Accuracy |
±1% |
| Machine weight |
About 750kg |
| Warranty |
12 months |
Product Description
The Liyi Automatic Concrete Compression Testing Machine is designed for compression strength testing of building materials including brick, cement, concrete specimens, and components. With special accessories, it can also perform bending, flexure resistant tests, and compression tests for red brick.
This machine complies with international standards including ISO 679, ASTM C39, and BS-EN 1881. It features hydraulic loading, electronic load measurement, digital display of load and loading speed, peak load holding, overload protection, and data printing capabilities.
Key Features
- Compact structure with high-precision force sensor
- Digital display of test force and loading speed
- Maximum peak holding function
- Built-in results printing capability
- Stable performance with ±1% accuracy
- Automatic operation for efficient testing
Technical Specifications
| Max force |
2000kN |
| Test force range |
0-2000 KN |
| Working pressure |
40MPa |
| Piston stroke |
50mm |
| Max compression space |
250mm |
| Compression plate size |
260×300mm |
| Machine size (L×W×H) |
800×500×1300mm |

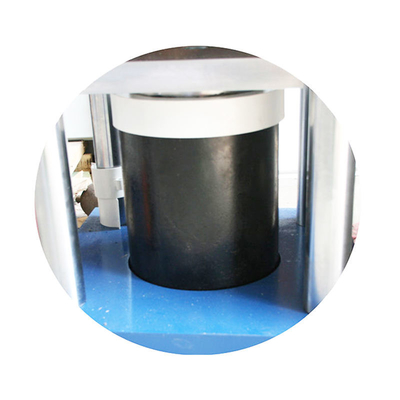

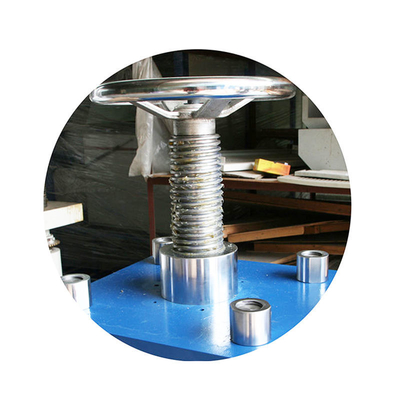

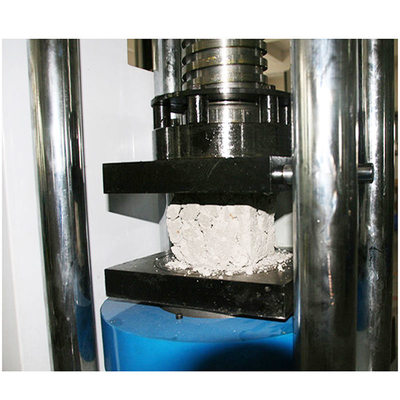

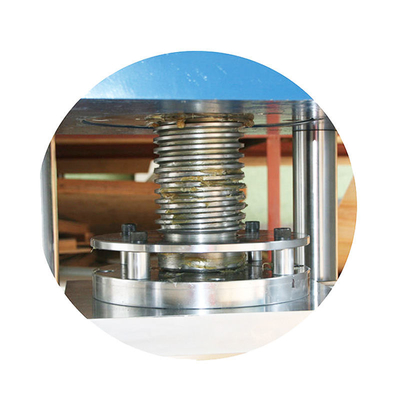

Product Images
Manufacturer Information
Dongguan Liyi Environmental Technology Co., Ltd is a high-tech production-oriented enterprise specializing in developing and manufacturing various environmental testing equipment. With advanced technology, experienced personnel, and a comprehensive quality management system, we serve customers in over 150 countries.
Frequently Asked Questions
Are you the manufacturer? What about after-sales service and warranty?
Yes, we are a professional manufacturer with 12 months warranty on all machines. We offer free maintenance during warranty period and extend 2 months for sea transportation. Technical support is available via email or video chat, with solutions typically provided within 24-48 hours of problem confirmation.
What is the delivery time?
Standard machines are typically available from stock. For non-stock items, delivery time is 15-20 working days after deposit receipt. Urgent orders can be accommodated with special arrangements.
Do you accept customization and OEM services?
Yes, we offer both standard and customized machines according to customer requirements, including OEM and ODM services with customer logos.
How can I install and use the machine?
Most machines are shipped fully assembled - just connect power to begin operation. We provide English operation videos via email, and can assist with on-site installation when necessary.
