Thông tin chi tiết sản phẩm:
|
| Quyền lực: | 1,5kW | Sự chính xác: | ± 0,5% |
|---|---|---|---|
| Điện áp: | 220V, 380V, 240V, 110V | Tải tối đa: | 300kn |
| Phạm vi kiểm tra: | 6kn-300kn | Độ chính xác của lực kiểm tra: | 1% |
| Độ phân giải dịch chuyển: | 0,01mm | Độ chính xác kiểm tra biến dạng: | 0,5% |
| Không gian vẽ tối đa: | 800mm | Cú đánh vào bít tông: | 250mm |
| Cung cấp điện: | 380v | Cân nặng: | 2800kg |
| Không gian nén tối đa: | 700mm | Độ dày kẹp mẫu phẳng: | 0-15mm |
| Đường kính kẹp mẫu tròn: | 6 -26mm | ||
| Làm nổi bật: | 300KN universal testing machine,universal testing machine with 800mm drawing space,Liyi universal testing machine |
||
| Attribute | Value |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Power | 1.5KW |
| Accuracy | ±0.5% |
| Voltage | 220V, 380V, 240V, 110V |
| Type | Testing machine |
| Protection Class | IP56 |
| Max Load | 300KN |
| Test Range | 6KN-300kN |
| Test Force Accuracy | 1% |
| Displacement Resolution | 0.01mm |
| Deformation Test Accuracy | 0.5% |
| Max Drawing Space | 800mm |
| Piston Stroke | 250mm |
| Power Supply | 380V |
| Weight | 2800kg |

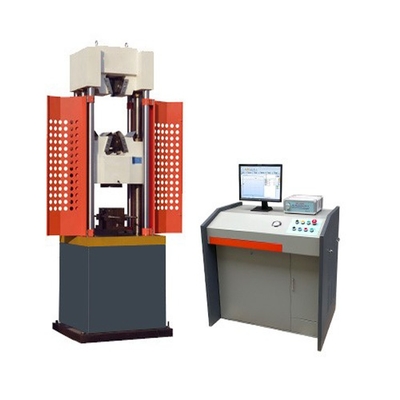

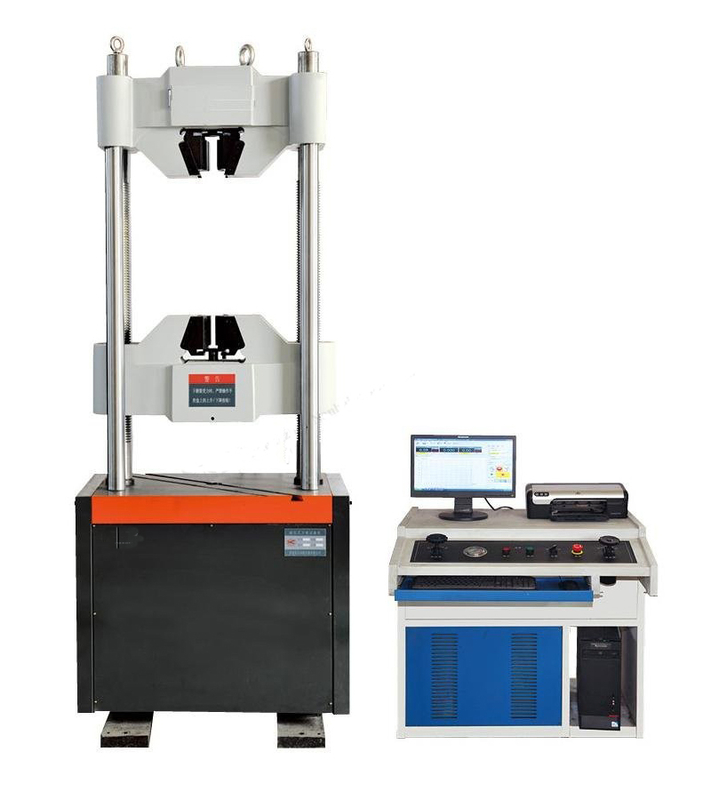

The Liyi hydraulic universal testing machine is designed for tension, compression, bending, and shearing tests on metal materials. With additional accessories, it can perform various mechanical performance tests.
| Model | LYH-300D | LYH-600D | LYH-1000D | LYH-2000D |
|---|---|---|---|---|
| Max Load(kN) | 300 | 600 | 1000 | 2000 |
| Test Range | 6KN-300kN | 12KN-600kN | 20KN-1000kN | 40KN-2000kN |
| Test Force Accuracy | ±1% | ±1% | ±1% | ±1% |
| Displacement Resolution | 0.01mm | 0.01mm | 0.01mm | 0.01mm |
| Deformation Test Accuracy | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Max Drawing Space | 800mm | 800mm | 850mm | 800mm |
| Max Compressing Space | 700mm | 700mm | 700mm | 700mm |
| Weight | 2800kg | 3000kg | 4700kg | 6500kg |
Yes, we are a professional manufacturer of testing equipment. All machines come with 12 months warranty after shipment, including free maintenance. For overseas shipments, we extend this to 14 months. Technical support is available via email or video chat, with solutions typically provided within 24-48 hours.
Standard machines are typically available from stock. For non-stock items, delivery time is 15-20 working days after deposit receipt. Urgent orders can be accommodated with special arrangements.
Yes, we provide both standard and customized machines according to customer requirements. OEM and ODM services are available, including custom branding with your logo.
Most machines ship fully assembled - just connect power to begin operation. We provide English operation videos via email. For complex installations, we can provide on-site assistance if needed.
Dongguan Liyi Environmental Technology Co., Ltd is a high-tech enterprise specializing in environmental testing equipment. With advanced technology and experienced personnel, we serve customers in over 150 countries from our manufacturing base in Dongguan, China.
